F series Half-shell Key Metal Connector
F series Half-shell Key Metal Connector
PL-S straight plug female contacts without nut for sleeve
PL-S straight plug female contacts without nut for sleeve
Technical Characteristics:
1. Endurance: > 5000 mating cycles
2. Humidity: up to 95% at 60 ºC
3. Temperature range: -55 ºC, +250 ºC
4. Resistance to vibration: 15 g [10 HZ-2000HZ]
5. Shock resistance: 100 g ,6 MS
6. Salt spray corrosion test: > 48h
7. Protection index (mated): IP 50 / IP67
8. 360° screening for full EMC shielding
9. Natural or Black chrome Plated Brass
PL-S Straight Plug Replacement Size and Cores:
S102 series: 2 3 4 5 7 9 10 pin
S103 series: 2 3 4 5 6 7 8 10 12 pin
S1031 series: 10 12 19 pin
S104 series: 2 3 4 5 6 7 8 9 11 16 19 27 pin
S105 series: 2 3 4 7 8 9 10 12 13 15 16 18 24 27 pin
For data sheet, price, lead time, please contact us.
Product details
F Series Half-shell Key Connector Features:

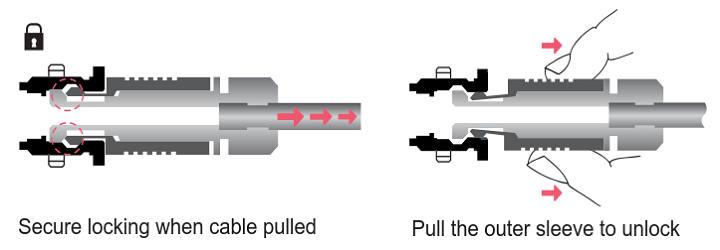

1. Original push-pull automatic locking.
2. Widely adopted by the industry.
3. Provides unparalleled signal integrity.
4. Fully secured against accidental disconnection.
5. Designed for frequent connect/disconnect operations.
6. Integrated into the connector housing.
7. it is ideal for compact product design.
Key Feautures:
Wide range of body styles and sizes
1. Unsealed, sealed or hermetic.
2. Signal or power.
3. Multipole up to 27 contacts.
4. Standard or inverted polarity.
5. Solder or PCB contacts.
6. Guide mark standard.

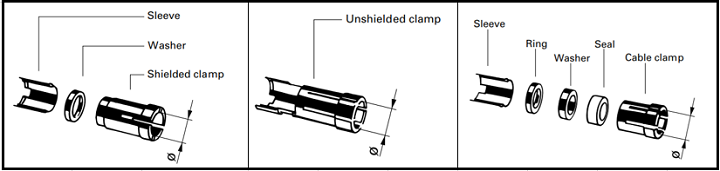

PL-S Series Straight Plug Cable Clamp Sets 3 Types:
1. Shielded cable clamp with sleeve.
2. Unshielded, one-piece cable clamp.
3. Environmentally sealed clamp for use with shielded or unshielded cables.
Application:
F series are widely used in Diagnostic devices, Surgical instrumentation, Therapy applications, Medical imaging, Cardiac assist devices, Disposable equipment.
